Àüµ¿Åõ¾î¸µ Àüµ¿Åõ¾î¸µ > MUGEN > A2006 Mugen Seiki MTC3 Touring Car Kit 1:10 with Aluminum Chassis
ÀÌÀü»óǰ A2006 Mugen Seiki MTC3 Touring Car Kit 1:10 with Aluminum Chassis ´ÙÀ½»óǰ

Á¦Á¶È¸»ç : MUGEN
ÆÇ¸Å°¡°Ý : 960,000¿ø
Àû¸³±Ý¾× : 1%
¼ö·® EA





»óǰ »ó¼¼ ¼³¸í

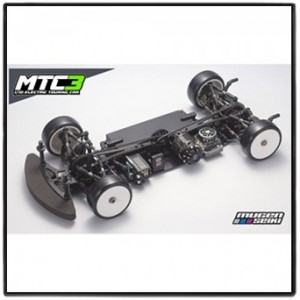

[A2006] Mugen Seiki MTC-3 Touring Car Kit 1:10 with Aluminum Chassis

1Â÷ºÐ ÆÇ¸Å ÀÌÈÄ¿£ 106¸¸¿ø Á¤»ó°¡°ÝÀ¸·Î ÆÇ¸ÅµË´Ï´Ù.












Chassis

  • New 1.5mm aluminum chassis.
  • Used with standard bolts only (no special bolts required).
  • The new chassis offers a wider range of torsional stiffness settings to adapt to all track conditions.
  • The new chassis eliminates the need for a carbon chassis option.
  • Lower center of gravity for improved cornering (0.5 mm or 0.7 mm).
  • The chassis design has less overhang to create more clearance and reduce the likelihood of the chassis touching the track surface.

Suspension

  • New carbon lower arm design.
  • New shock and upper arm angle adjustability - no shims required, no shims to misplace.
  • Faster and easier setup adjustments.

Engine mount

  • Redesigned aluminum engine mount.
  • New adjustable countershaft height.
  • Allows the main gear to be used in the lowest possible position.
  • Ability to use 90-inch spur gears for a wide range of categories and track conditions (standard and modified).
  • Better weight distribution.

Top deck

  • New carbon top decks with improved position of the top deck in the vehicle.
  • New top deck where the upper bulkheads can be completely removed.
  • Easy access to the differential without having to remove anything other than the rear top deck.
  • New bulkheads with compact design

Shock absorbers

  • The new shock absorber bridges are bolted directly to the bulkheads - no additional parts are required (can be used in fixed or active position).
  • New short shock absorbers provide a lower center of gravity and improved geometry.
  • New range of ultra-short shock absorbers.
  • Reduced weight of the shock package.

New body posts

  • Easier body mounting.
  • The front has two spacers to facilitate body preparation.
  • Three body mounting options are available at the rear (horizontal, vertical and horizontal with additional part for mounting in the body wing strut).
  • The rear has an adjustable suspension travel stopper, which is included in the kit.

Other new features

  • New body support included in the MTC3 kit.
  • New upper arms with new design using a 6 mm ball.
  • Two body stop positions.
  • Lightweight bumper - the carbon upper plate includes an adjustable travel limiter.
