ALL4RC [Nitride 1/10 GENERATION2 (3월20일경 출고 예정)]

NITRIDE 1/10 G2는 센서가 있는 브러시리스 DC 모터용 신세대 전자 속도 제어기입니다.

알루미늄 질화물 세라믹 쿨러를 기반으로 한 첨단 냉각 기술을 사용하여 NITRIDE 1/10 G2는 우수한 열전도율을 자랑하며 4.5톤 이상의 강력한 모터와 함께 사용할 수 있습니다.

NITRIDE 1/10 G2는 TFT LCD 컬러 디스플레이를 제공하여 모든 매개변수를 빠르고 쉽게 조정하고, 경기 후 데이터 평가와 자체 진단을 다른 인터페이스 없이도 지원합니다.

1세대의 검증된 기능을 바탕으로, NITRIDE 1/10 G2는 RC 모터 제어를 완전히 새로운 차원으로 끌어올리는 혁신적 기능을 도입했습니다.

LCD Display

As you got used to by ELCERAM speedos, NITRIDE 1/10 G2 is endowed with necessary LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.

The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisely.

Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It is really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.

NITRIDE 1/10 G2 saves your data from your last race after turning ESC off and enables you to watch it after the next turn on. Take your time and analyze the data at your leisure, whenever you want!

Advanced Cooling Technology based on ceramic and Thick Film Technology

Advanced cooling technology based on Aluminium Nitride cooler, developed especially for NITRIDE, provides the ESC the excellent thermal conductivity and long-term resistance to high temperatures and loads.

Power MOSFET´s transistors are attached on very thick silver layer with low resistance and high current capability. The silver layer is fired directly on Aluminium Nitride cooler using temperature above 850 °C for excellent long-term reliability and thermal shock stability. The power stage - the heaviest component - is all way down.

During production, we use very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies inspired by advanced power systems designed and manufactured here in ELCERAM.

Quick and easy installation

Installation of NITRIDE 1/10 G2 is quick and easy - you can stick it to the chassis of your car using Aluminium mounting plate included in the package and double-sided tape. Recommended tape type is 3M GPH-110.

You can also screw NITRIDE directly onto a suitable place on your chassis, ideally with good thermal conductivity.

For highly demanding conditions where better cooling effect is desired, especially for motors 4.5 T and 5.0 T, we recommend to use passive heatsink or external FAN. The new Aluminium mounting plate included in the package and also available as option part ELC022 is already equipped with FAN holder for quick and easy FAN installation, for example ELCERAM FAN 2510, available as option part ELC025.

The Aluminium cover and display with buttons are replaceable easily in case of any accident. Both are available as a spare part - ELC023 and ELC024.

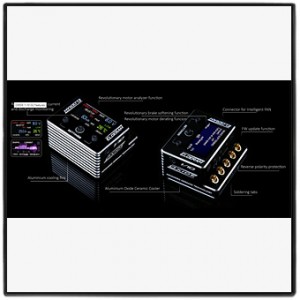

Features:

ESC for sensored BLDC motors from 4.5 T up.
Developed especially for 1/10 RC cars.
Reverse polarity protection.
Intelligent algorithms for ESC protection.
Fine throttle and brake adjustment for excellent feeling.
TFT LCD color display with resolution 160 x 80 pixels, matte finish.
Size: 36,5 (L) x 34 (W) x 24 (H) mm.
Weight: 59 g without wires.
Power supply: 2S LiPo.
ESC current cont. / pulsed: 180 A / 1500 A.
BEC: 6 - 7,4 V adjustable, current cont. / pulsed: 6 A / 12 A.
Extreme low internal resistance based on silver conductive layer.
Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
Connector for intelligent FAN.
Zero Timing (Blinky Mode) supported.
EFRA, ROAR and BRCA approved.

Functions:

Revolutionary easy Rx calibration.
Realtime monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and more.
Revolutionary battery current and discharge monitoring.
Revolutionary motor derating function.
Revolutionary brake softening function.
Revolutionary motor analyzer function.
Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and more.
Post-race data evaluation. Post-race data saved after ESC turn off.
Easy programming: throttle, brake, boost and turbo timing, hall angle, BEC and many other functions.
Continuous BEC voltage monitoring.
Continuous motor speed monitoring.
RPM limiter supported.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy check.
No programming interface needed.

새로운 혁신 기능:
